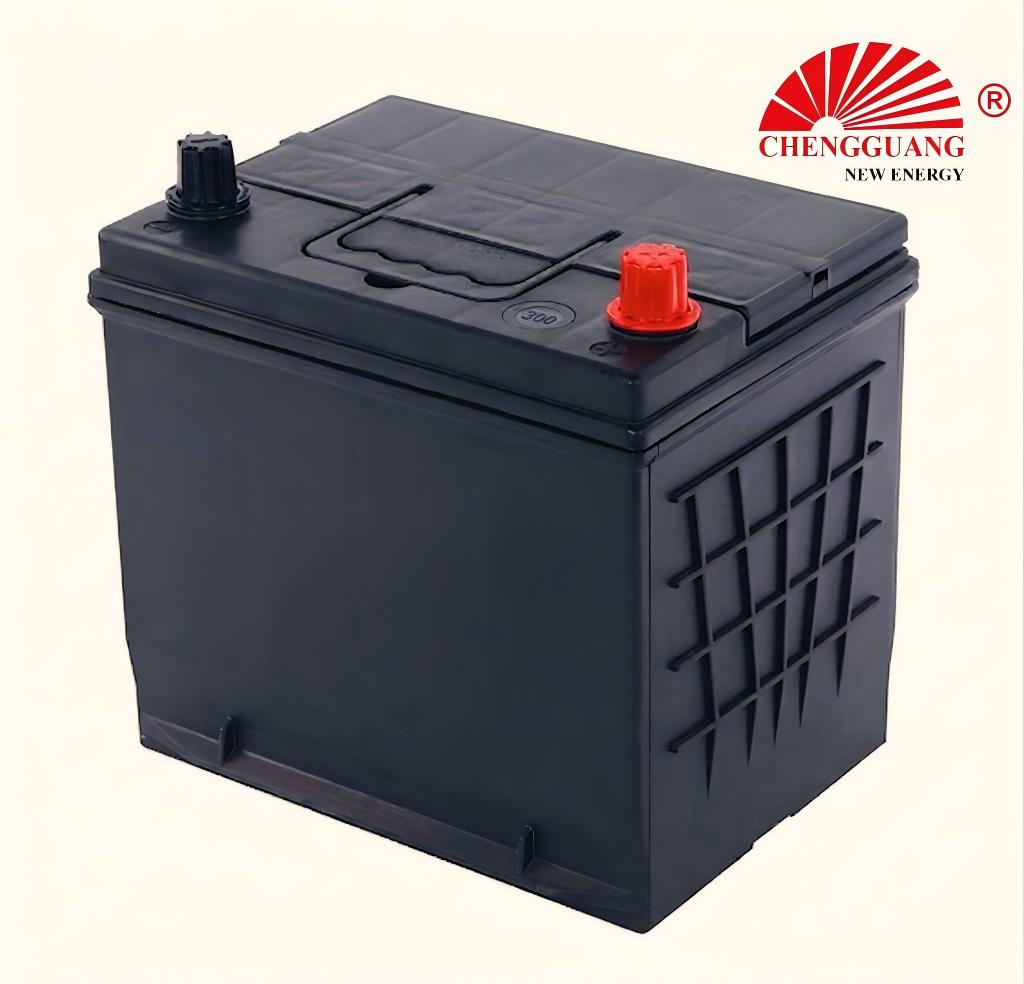

55D23 Battery — 75D23
The 55D23 is the mid-compact JIS battery — bridging the narrow 55B24 (129 mm) and the full-size 65D26 (260 mm). Its 232 mm length makes it shorter than the ubiquitous 65D26, fitting vehicles with tighter engine bay dimensions while delivering 60Ah and 500 CCA.
Quick Reference
| Parameter | Specification |
|---|---|
| Model | 55D23 |
| Also Known As | 75D23 |
| Standard | JIS |
| Battery Type | SLI |
| Nominal Voltage | 12 V |
| Capacity (C20) | 60 Ah |
| CCA Rating | 500 A (SAE) |
| Dimensions (LxWxH) | 232 x 173 x 202-225 mm |
| Terminal Type | T1 small post |
| Polarity | Left (-), Right (+) — JIS type [0] |
| Hold-Down | B00 (top frame) |
| Approximate Weight | 13-16 kg |
| Chengguang SKU | CG-JIS-55D23 |
Specification Ranges
Values shown are typical ranges. Exact specifications vary by production batch. Contact Chengguang for your order's technical data sheet.
How to Identify This Battery
Standard D-series width (173 mm) with a shorter 232 mm length — 28 mm shorter than the 65D26. Check label for '55D23' or '75D23'. The shorter length distinguishes it from the 65D26 in the same D-series family.
Vehicle Applications
Compact-to-mid sedans with 1.6L-2.0L gasoline engines. Popular original equipment size for Toyota Corolla and Honda Civic.
Compatible Vehicles
| Toyota | Corolla/Altis (pre-2014), Vios (some markets) | | Honda | Civic (8th-9th gen), City (larger variants) | | Mazda | 3, Axela | | Nissan | Sylphy/Sentra, Tiida | | Mitsubishi | Lancer, Lancer EX |
Fitment Verification
Vehicle fitment is a general guide based on market experience. Always verify your vehicle's battery tray dimensions, terminal position, and hold-down type before ordering.
Regional Markets
Southeast Asia (core market), Middle East, Africa (East/West), Oceania. Widely stocked by battery shops across developing markets.
Manufacturing at Chengguang
D-series automated line. Ca-Ca grid alloy. Standard volume: 2,500-3,500 units/day. Shared tooling with 65D26 for D-series width components.
Testing & Quality Control
100%: CCA (SAE J537, >500A), OCV, visual. Batch: C20, RC, charge acceptance (IEC 60095-1), vibration (JIS D 5301).
Related Battery Models
- 55B24 — narrower (129 mm), lower capacity (45Ah)
- 65D26 — longer (260 mm), higher CCA (550A). Most common upgrade
- DIN70/57117 — European equivalent (verify hold-down: B13 vs B00)
Equivalent Models & Cross-Reference
| Model | Standard | Relationship | Confidence |
|---|---|---|---|
| 75D23 | JIS | Alias / Same case | :material-check: High |
Equivalent Does Not Mean Identical
Different model designations may indicate different specifications. Cross-standard equivalents are dimensional approximations only.
OEM & Private Label Availability
This model is available for OEM manufacturing under your brand from Chengguang Power Tech:
- IATF 16949:2016 certified manufacturing in Jinzhou, Hebei, China
- Custom label, case color, terminal type, and retail packaging
- Full batch traceability — raw material lot to shipping container
- 100% pre-shipment CCA and capacity testing with CoA
- DG-compliant export packaging (UN 2794 / Class 8)
- Technical data sheet, MSDS, and Certificate of Analysis per shipment
Request OEM Quote }View OEM Process}
Frequently Asked Questions
55D23 vs 65D26: which should I buy?
If your tray is 232 mm: 55D23. If 260 mm: 65D26 (higher CCA, more common, often cheaper per Ah). Measure before buying.
Is 75D23 the same as 55D23?
Same case. 75D23 typically indicates 75Ah class vs 60Ah for 55D23. Verify the Ah rating on the label.
What vehicles use 55D23?
Toyota Corolla (pre-2014), Honda Civic (8-9th gen), Mazda 3. Many Japanese compact-mid sedans use this size.
Last verified: 2026-08-11 | Source: Chengguang Power Tech Co., Ltd. | SKU: CG-JIS-55D23 | Manufactured in Jinzhou, Hebei, China
Author: Chengguang Power Tech Technical Team | Reviewed: IATF 16949 Quality Department | Technical Reference
