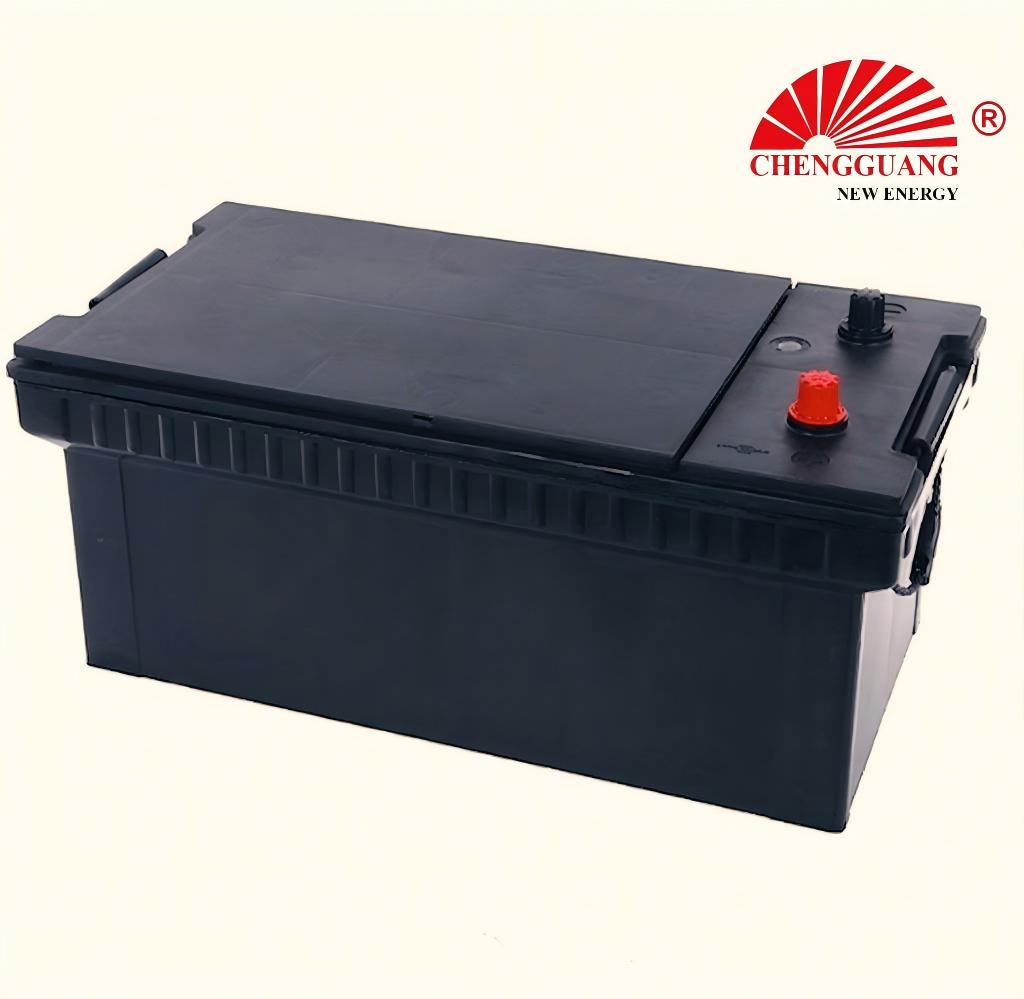

190H52 Battery — N200
The 190H52 (N200) is the largest, most powerful battery in the Chengguang range — 200Ah capacity and 1,100 CCA for heavy-duty trucks, large buses, earthmoving equipment, and stationary engines. Extra-thick plates (3.5-4.0mm) and massive lead content (45-55 kg) provide starting power for the largest diesel engines.
Quick Reference
| Parameter | Specification |
|---|---|
| Model | 190H52 |
| Also Known As | N200 |
| Standard | JIS |
| Battery Type | Heavy Duty |
| Nominal Voltage | 12 V |
| Capacity (C20) | 200 Ah |
| CCA Rating | 1,100 A (SAE) |
| Dimensions (LxWxH) | 521 x 278 x 220-270 mm |
| Terminal Type | T1 large post |
| Polarity | Left (-), Right (+) — JIS type [0] |
| Hold-Down | B00 (top frame) |
| Approximate Weight | 45-55 kg |
| Chengguang SKU | CG-JIS-190H52 |
Specification Ranges
Values shown are typical ranges. Exact specifications vary by production batch. Contact Chengguang for your order's technical data sheet.
How to Identify This Battery
Largest JIS case: 521 x 278 mm. T1 large post terminals. Label shows '190H52' or 'N200'. Weight (45-55 kg) is unmistakable — over 3x a standard car battery. Requires two-person handling or mechanical lift.
Vehicle Applications
Heavy-duty trucks (>8L diesel), large buses and coaches, earthmoving equipment, stationary diesel generators, mining equipment. The most demanding starting applications.
Compatible Vehicles
| Heavy trucks | Tractor units (semi-trucks), dump trucks, concrete mixers | | Buses | City buses, intercity coaches | | Construction | Large excavators, dozers, graders, mining trucks | | Stationary | Large diesel generators (prime/standby power) | | Marine | Large commercial vessel starting |
Fitment Verification
Vehicle fitment is a general guide based on market experience. Always verify your vehicle's battery tray dimensions, terminal position, and hold-down type before ordering.
Regional Markets
Commercial vehicle aftermarket — global. Mining regions, major construction markets, fleet operators worldwide.
Manufacturing at Chengguang
Heavy-duty line with extra-thick Pb-Sb grids (3.5-4.0mm). Massive deep sump design. Ribbed high-impact PP case. Heavy-duty COS and through-the-wall intercell welds for 1,100A current handling. Output: 500-800 units/day.
Testing & Quality Control
100%: CCA (SAE J537, >1,100A), OCV, high-rate discharge, visual. Batch: C20, RC (300-400 min typical), severe vibration (5g/8hr), thermal cycling (-40degC to +70degC), deep cycle endurance (80% DoD).
Related Battery Models
- 145G51/N150 — medium heavy duty (508 mm, 135Ah) for medium trucks
- DIN100/60038 — passenger car battery, not a replacement
Equivalent Models & Cross-Reference
| Model | Standard | Relationship | Confidence |
|---|---|---|---|
| N200 | JIS | Alias / Same case | :material-check: High |
Equivalent Does Not Mean Identical
Different model designations may indicate different specifications. Cross-standard equivalents are dimensional approximations only.
OEM & Private Label Availability
This model is available for OEM manufacturing under your brand from Chengguang Power Tech:
- IATF 16949:2016 certified manufacturing in Jinzhou, Hebei, China
- Custom label, case color, terminal type, and retail packaging
- Full batch traceability — raw material lot to shipping container
- 100% pre-shipment CCA and capacity testing with CoA
- DG-compliant export packaging (UN 2794 / Class 8)
- Technical data sheet, MSDS, and Certificate of Analysis per shipment
Request OEM Quote }View OEM Process}
Frequently Asked Questions
190H52 vs 145G51?
190H52 is larger (521x278 vs 508x222 mm), heavier (45-55 vs 30-38 kg), and more powerful (200Ah/1,100CCA vs 135Ah/900CCA). 190H52 for heavy trucks/equipment. 145G51 for medium trucks/buses.
Is N200 the same?
Yes — N200 is the regional designation for 190H52.
For 24V systems?
Use two 190H52 in series. Common configuration for heavy truck and equipment 24V starting systems.
Handling and safety?
45-55 kg requires mechanical lift or two-person handling. Always wear PPE. Terminal covers during transport. Secure with B00 frame clamp.
